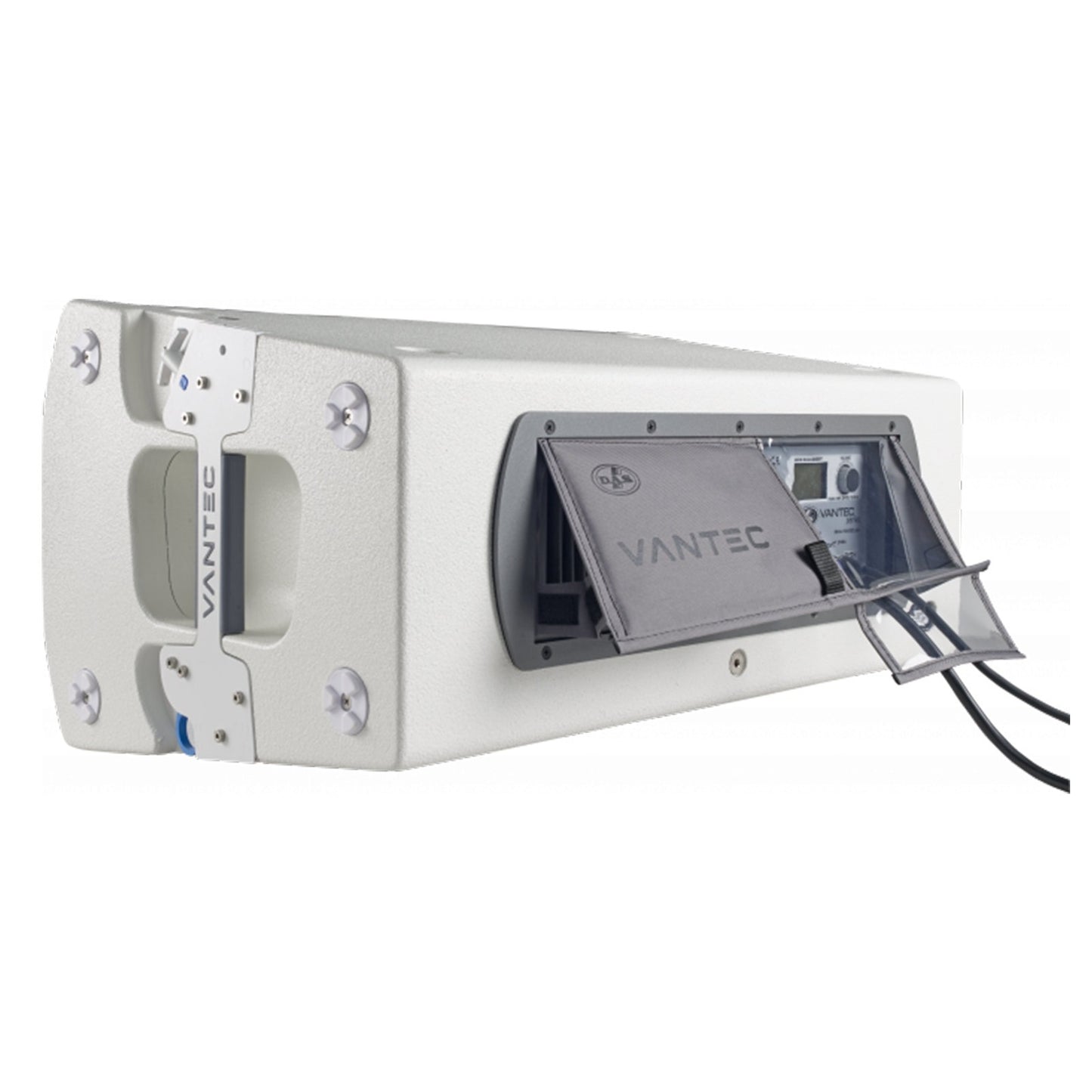

DAS Vantec 20A-W Active 12" Line Array Speaker - White

$2,829.00 USD
$2,829.00 USD
Shipping calculated at checkout.
  • Description
  • Reviews
  • Description
    • The VANTEC-20A-W is an active curved source line array that incorporates an arsenal of hi-tech solutions designed to provide the versatility needed by today's sound hire professionals. Whether it be stacked on the VANTEC-118A-W companion subwoofer, flown in a compact array, or used alone on a speaker stand, the VANTEC-20A-W can be used effectively in an incredible number of applications that include corporate A/V, mid-size sound reinforcement, and permanent installation. Designed for use in arrays of up to 5 units, the VANTEC-20A-W is ideal for applications where the power and long-throw characteristics of large line arrays are not needed. Fast and simple deployment is guaranteed thanks to the exclusive DAS Click-Lock rigging hardware which allows the system to be securely flown from or stacked on the VANTEC-118A-W. Individual units can be mounted on tripods with precise aiming possible thanks to the variable angle pole mount which allows for 13.5° up or down tilt.

    The DAScontrolTM interface allows users to easily configure the VANTEC-20A-W i systems for use individually or in combination with other units. Selectable high pass filter presets facilitate alignment with the VANTEC-18A and VANTEC-118A-W active bass systems without external processing. Throw compensation settings and array size selection can all be handled simply via the DAScontrolTM interface. When the VANTEC-20A-W is used individually, the DASlinkAPP can be used to stream music in high definition stereo and remotely control the systems functions. The enclosure is manufactured using Baltic birch plywood and finished with the DAS ISO-flex coating. Power is supplied by a cutting-edge 1500 Wpeak Class D amplifier in a biamplified configuration driving a single DAS 12F4C loudspeaker and twin M-60 compression drivers.

    DAS Vantec 20A-W Active 12" White Line Array Speaker Features:

    • Active Curved Source Line Array.
    • Class D Bi-amplified 1500 Wpeak.
    • FIR filters for linear phase response.
    • 1 x DAS 12F4C + 2 x M-60 compression drivers.
    • Compact design with high output capabilities.
    • DAScontrol with presets and configurations.
    • DASlink wireless streaming and remote control.
    • +/- 13.5° variable tilt pole mount.
    Applications:
    • Concerts and corporate A/V.
    • Portable and live clubs.
    • Theaters and auditoriums.
    • Houses of worship.
    Performance
    Frequency Range (-10 dB) 63 Hz – 20 kHz
    Horizontal Coverage (-6 dB) 90º
    Vertical Coverage 15º
    Maximum Peak SPL at 1 m 135 dB
    Electronics and Connectors
    Nominal Amplifier Power (continuous) 750 W
    Nominal Amplifier Power (peak) 1500 W
    Input Impeadance 20 kohms
    Input Sensitivity Line: 3 V (+12 dBu)
    Audio Signal Input Connector 2 x Female XLR
    Audio Signal Loop Thru Connector 1 x Male XLR
    Control DASlink™
    DAScontrol™
    AC Output Connector powerCON NAC3FCB
    Current Draw 230 V / 115 V 1.5 A/3.0 A
    Enclosure
    Enclosure Construction Birch Plywood
    Enclosure Geometry Trapezoidal
    Rigging Captive Rigging System
    Finish ISO-flex Paint
    Color White
    Dimensions ( H x W x D ) 335 x 625 x 440 mm
    13,2 x 24,6 x 17,3 in
    Net Weight 28,5 kg ( 62,8 lb )
    Components
    LF Driver 12F4C
    HF Driver M-60
    Horn/Waveguide BC-915
    Shipping
    Carton Dimensions ( H x W x D ) 490 x 730 x 490 mm
    19,3 x 28,7 x 19,3 in
    Shipping Weight 30,5 kg ( 67,2 lb )
